Horizontal Glass Drilling Machine

Get a Price/Quote

Product Details:

Product Type Horizontal Glass Drilling Machine
General Use Industrial
Type Other
Computerized No
Automatic Yes
Control System PLC Control
Cutting Method Linear Glass Cutting
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Horizontal Glass Drilling Machine Price And Quantity

Minimum Order Quantity 1 Unit

Horizontal Glass Drilling Machine Product Specifications

Warranty 1 Year
General Use Industrial
Color White and Blue
Product Type Horizontal Glass Drilling Machine
Automatic Yes
Voltage 220-440 Volt (v)
Control System PLC Control
Type Other
Feature ECO Friendly
Computerized No
Cutting Method Linear Glass Cutting

Horizontal Glass Drilling Machine Trade Information

Payment Terms Cash Advance (CA)
Supply Ability 30 Unit Per Month
Delivery Time 7-10 Days
Packaging Details NUDE PACKAGE

Product Description

Horizontal Glass Drilling Machine is used to drill holes into glass. It creates holes for hinges, handles, and other hardware. It is designed to be used with a variety of glass types, including tempered, laminated, and annealed glass. The machine is typically operated by a single operator and is equipped with a variety of safety features, such as a safety guard and emergency stop button. In line with industry set norm, it is manufactured from quality assured raw material and the latest technology. Apart from this, offered Horizontal Glass Drilling Machine can be availed from us at market leading price.

Horizontal glass drilling machine adopts automatic control design, it clamps the glass pneumatically and it use oil pressure buffering technology on drill bit feeding . It can freely adjust the automatic drilling time and speed of the upper and lower drills. The worktable adopts pneumatic lifting, equipped with movable positioning and automatic material receiving device, which is fast and accurate for batch processing of glass workpieces. The product is available in automatic and manual versions.

Technical parameters:

Drilling diameter: 4-130 mm
Glass thickness: 3-30mm
Working table size: 670x580mm
Working table height: 900mm
Machine size: 1950x850x1800mm
Floating table size: 2230x1460x850mm
Air Supply: 0.6MPa

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

Other Products in 'Glass Drilling Machines' category

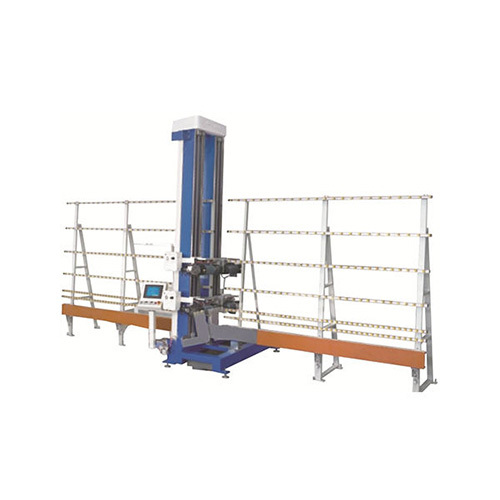

Vertical Glass Drilling Machine Minimum Order Quantity : 1 General Use : Industrial Warranty : 1 Year Voltage : 220440 Volt (v) Automatic : Yes Product Type : Vertical Glass Drilling Machine Color : White and Blue Feature : ECO Friendly Type : Other Control System : PLC Control Material : Stainless Steel Computerized : No Cutting Method : Linear Glass Cutting
